CYCLONE 2025 - SHIMANO 105 24 Speed - Carbon Road Bike

CYCLONE-3rd (105 small set) is a high-performance carbon road bike built for speed, precision, and control. The aero frame runs fully internal cabling and hydraulic disc brakes for confident stopping. It comes with the new SHIMANO 105 R7120 2×12-speed drivetrain and an integrated 3K carbon cockpit, with your choice of alloy rims or an upgraded carbon “Wave” wheelset.

Technical Specifications

Key Components

• Wheel Size: 700C
• Frame Height: 43.5 / 46 / 48 / 50 / 52 / 54 cm

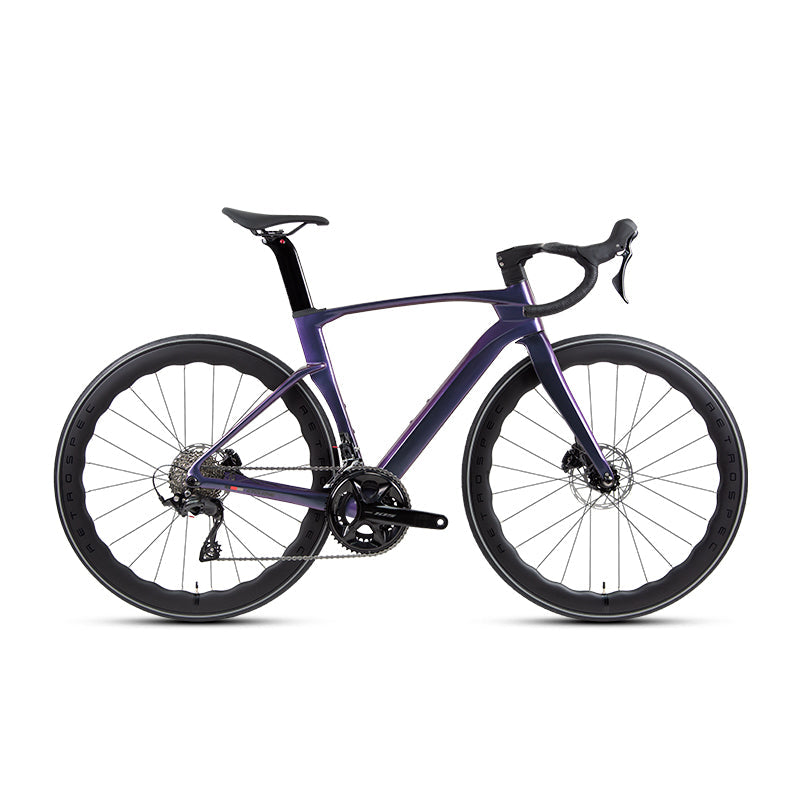

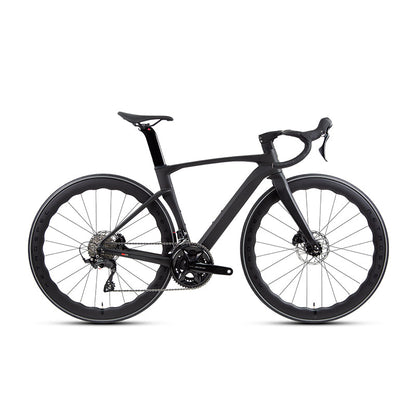

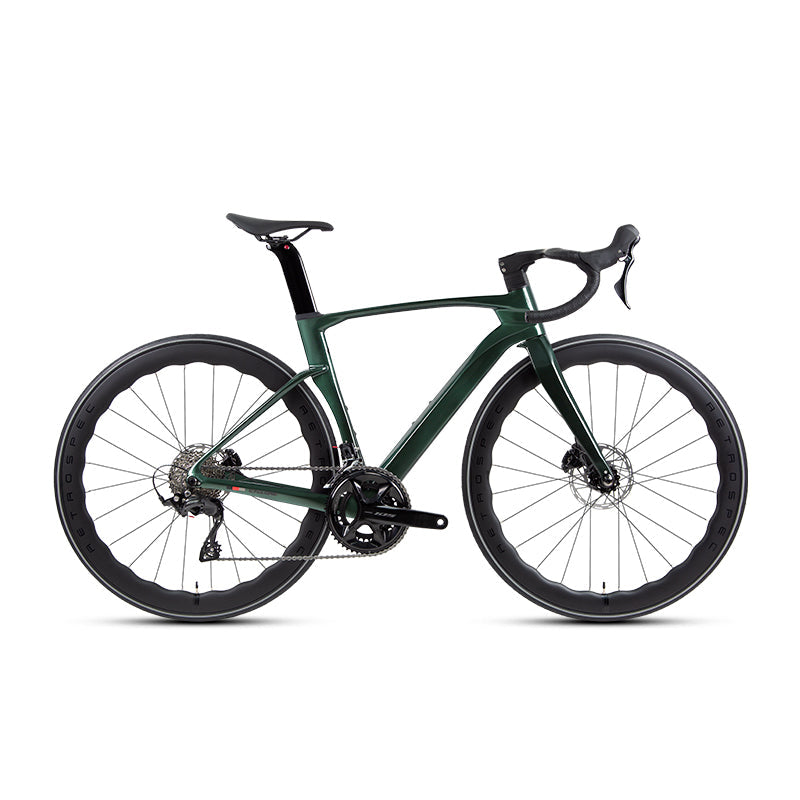

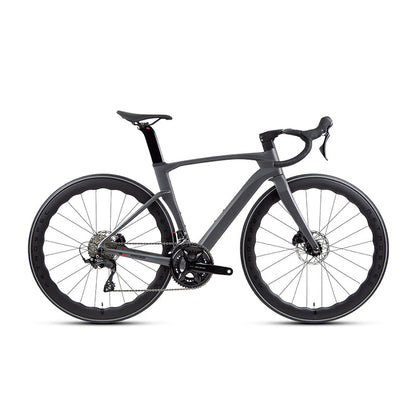

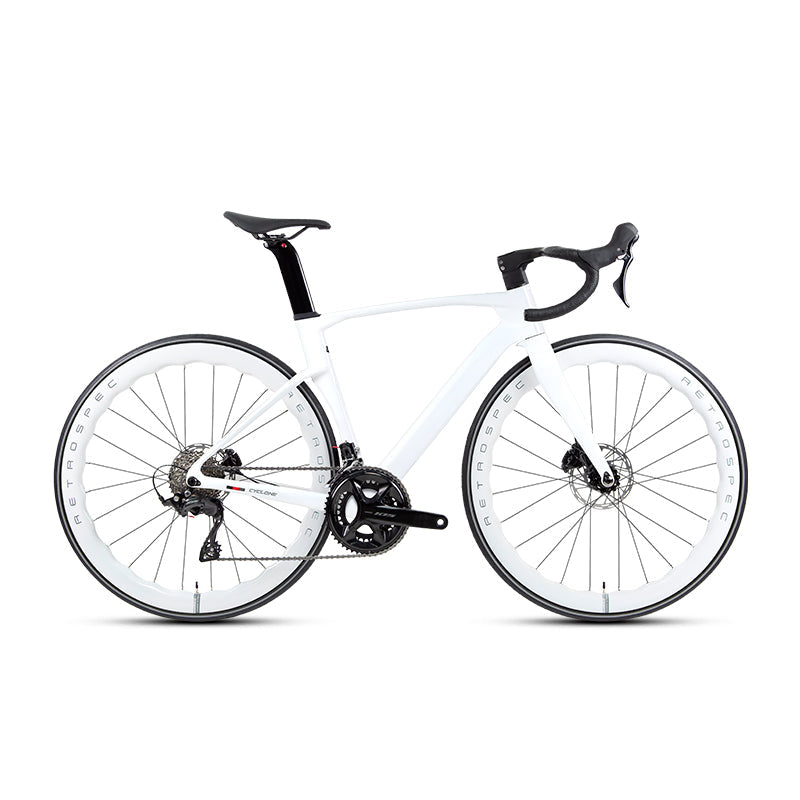

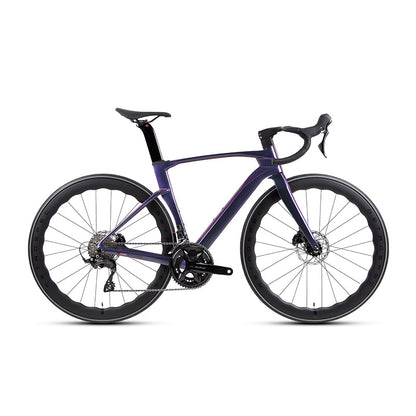

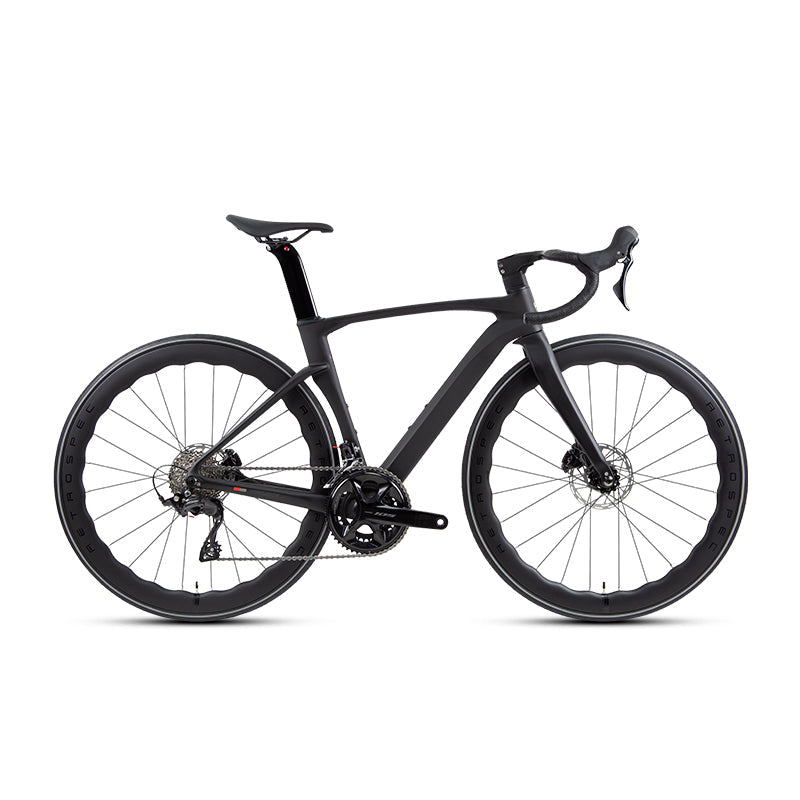

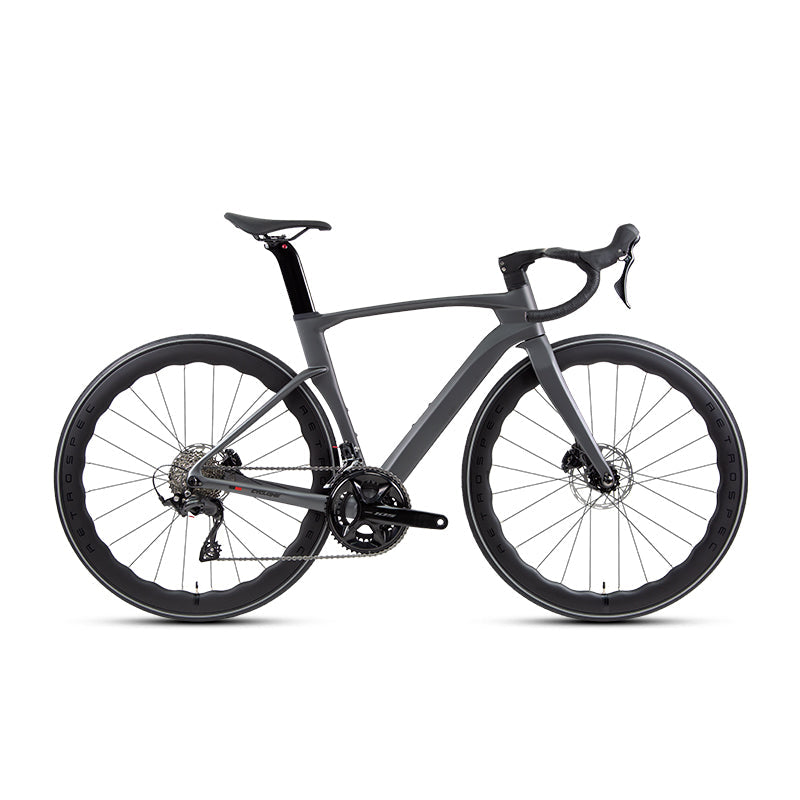

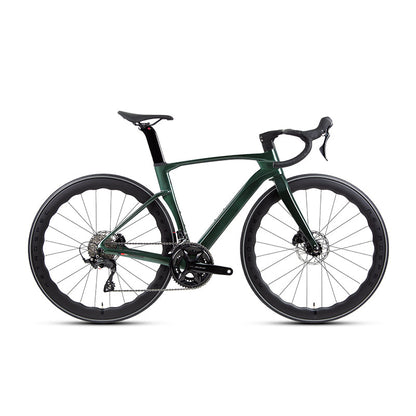

• Bike Color: White / MatteBlack / MatteDarkGray / Others — options include Full Holographic color, 3K gloss Black, and 3K gloss Green
• Net Weight: 8.7 kg (alloy rims) / 8.5 kg (carbon “Wave” rims)

Frame & Structure

• Frame: CYCLONE-3rd (disc & thru-axle 12×142), high-modulus carbon fiber, aero design, internal cables
• Fork: CYCLONE-3rd (disc & thru-axle 12×100), high-modulus carbon fiber, 700C
• Seat Post: High-modulus carbon fiber, aero-racing profile
• Clamps: Hidden screw fit to frame
• Head Sets: Aluminum-alloy CNC with sealed bearings, 52×52 mm
• Washer: Dedicated for inner-cables

Handlebar & Cockpit

• Handlebar Set: TW, high-modulus 3K carbon, integrated handlebar & stem (400×90 mm), full inner-cables

Drivetrain

• Shift/Brake Levers: SHIMANO 105 R7120 — 2×12-speed, hydraulic
• Front Derailleur: SHIMANO 105 R7100 — 2-speed
• Rear Derailleur: SHIMANO 105 R7100 — 12-speed
• Crankset: SENICX-PR1, aluminum alloy, hollow, 34–50T
• Cassette: 12-speed, 11–32T
• Chain: 12-speed
• Bottom Bracket: Threaded T47×24 mm, hollow & bearings

Braking System

• Brakes: SHIMANO 105 / R7070 hydraulic disc, 160/160 mm

Wheelset & Tires

• Hubs: RS, aluminum alloy & carbon fiber, 4-sealed bearings, HG, F24×R24 holes, disc & thru-axle F12×100 / R12×142
• Rim (Alloy): RS, AL7005, double wall, W21×H38 mm ×700C
• Rim (Carbon “Wave”): RS, high-modulus carbon fiber & Wave profile, W28×H50 mm
• Spokes: Circular 14G (alloy) / SHUNJIU, Flat 14G (carbon)
• Tires: MAXXIS-PURSUER, foldable & lightweight, 700×28C, black
  • Upgrade Options: Painted Wite or Holographic Carbon wheel finish +$40.

Other Components

• Belt: PU with comfortable & skid-resistant design
• Saddle: 3D-printing, comfortable & lightweight for racing
• Pedals: Lightweight & skid-resistant
• Cables: JAGWIRE
• Accessories: Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

What’s Included

• PC bottle cage + Tools
• Manual + Warranty card

How to Pay for Upgrades: Add the bike to your cart, list desired upgrades in the notes field, and complete checkout. You’ll receive a separate invoice by email once your purchase is confirmed.
